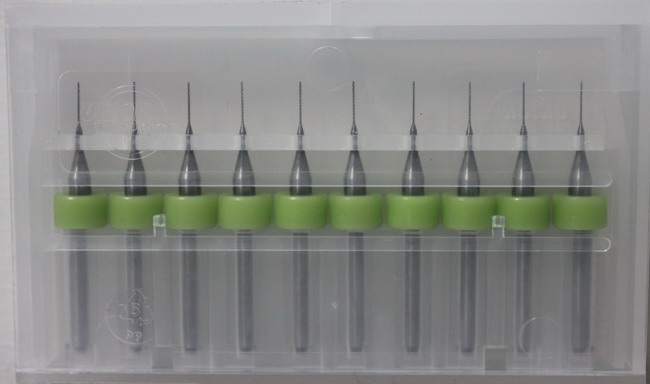

工業用專業鑽頭


工業用鑽頭

  • 照片說明文字
    Test Summary for the coating drills
    1.          Drill size : 0.3mm
    2.          Drill type: UCHA
    3.          Drill Length: 5.5mm
    4.          Test M/C: Hitachi Mark 30,
    5.          Entry material： 0.20mmaluminum sheet.
    6.          Backup material: 1.5mmphenolic board.
    		 *
    7.          Test board: PE test board, 8 layers, copper thickness 1/1, board thickness: 0.96+/-0.04mm
    8.          Drill hole parameter: normal
    9.          Drill hole condition: normal
    10.      Test board material: Mica. TG 140. (supplier: Doosan) inner core 3mil
    11.      Stack: 3 panels/stack
    12.      Lay-up instruction: (see attachment)
    Conclusion:
    The performance of new drill bit (with yellow ring) is accepted.
    8000 life time for the new bit is recommend .
    Remark: 40% of wear and tear of drill bit can be accepted when the first drilling.







     測試報告





    2000測試報告 4000測試報告 6000測試報告 8000測試報告



    Standard:          Hole wall roughness                    ≤25.4um
    　         Nail Head ≤1.5
      Drill 2000 hit 　
    Test board PE test board (8layers). Copper thicknes: 1/1. drill 3panels/stack
    Parameter of Drill hole  normal drill hole parameter 　
    Drill size 0.30mm 　
    Drill hole condition normal  　
    Hole wall roughness <=18um 　

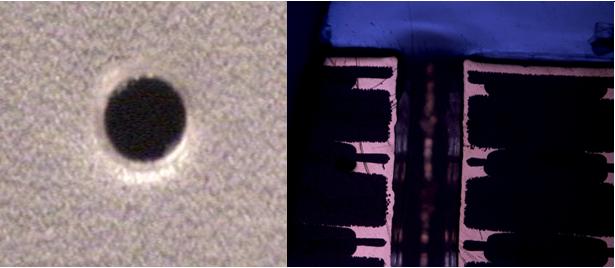

    Pictures of hole wall roughness and burr * 　
    Nail Head <=1.2 　
    Broken rate of drill bit N/A 　

    Standard:          Hole wall roughness                    ≤25.4um
    　         Nail Head ≤1.5
      Drill 4000 hit 　
    Test board PE test board (8layers). Copper thicknes: 1/1. drill 3panels/stack
    Parameter of Drill hole  normal drill hole parameter 　
    Drill size 0.30mm 　
    Drill hole condition normal  　
    Hole wall roughness <=9um 　

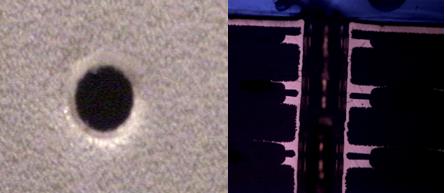

    Pictures of hole wall roughness and burr 　
    Nail Head <=1.4 　
    Broken rate of drill bit N/A 　

    Standard:          Hole wall roughness                    ≤25.4um
    　         Nail Head ≤1.5
      Drill 6000 hit 　
    Test board PE test board (8layers). Copper thicknes: 1/1. drill 3panels/stack
    Parameter of Drill hole  normal drill hole parameter 　
    Drill size 0.30mm 　
    Drill hole condition normal  　
    Hole wall roughness <=18um 　

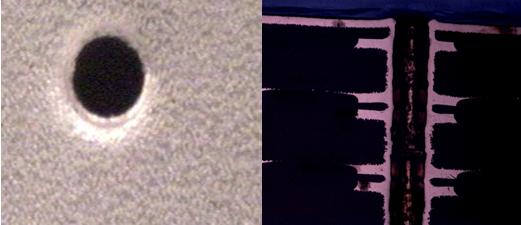

    Pictures of hole wall roughness and burr 　
    Nail Head <=1.5 　
    Broken rate of drill bit N/A 　

    Standard:          Hole wall roughness                    ≤25.4um
    　         Nail Head ≤1.5
      Drill 8000 hit 　
    Test board PE test board (8layers). Copper thicknes: 1/1. drill 3panels/stack
    Parameter of Drill hole  normal drill hole parameter 　
    Drill size 0.30mm 　
    Drill hole condition normal  　
    Hole wall roughness <=18um 　

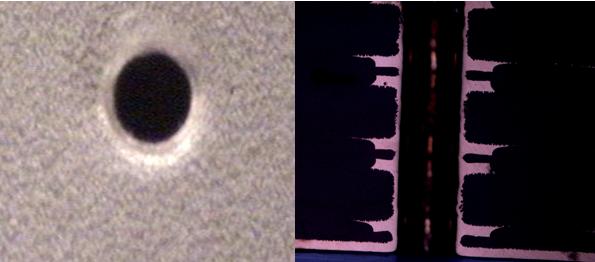

    Pictures of hole wall roughness and burr 　
    Nail Head <=1.5 　
    Broken rate of drill bit N/A 　
